Welcome to the Understanding Firewalls room! If you've completed our previous networking rooms, you already know how networks work, what protocols like TCP/IP and DHCP do, and how devices communicate. Now, we're going to learn about one of the most important security tools in networking: the firewall.

Think of a firewall as a security guard for your network. Just like a guard checks who enters a building, a firewall checks what data enters and leaves your network. It sits between your internal network (like your office or home computers) and the external world (the internet), making decisions about what traffic is allowed and what gets blocked.

What You'll Learn:

• What firewalls are and why every network needs one
• How firewalls work to protect your devices
• Different types of firewalls and when to use them
• How firewall rules are created and configured
• Practical examples of firewall protection

Prerequisites:

• Basic understanding of networks (from previous rooms)
• Knowledge of IP addresses and protocols
• Understanding of how data travels across networks

How to Approach This Room:

1. Read each task carefully - we'll build concepts step by step
2. Use the analogies to help understand technical concepts
3. Pay attention to the practical examples
4. Complete the knowledge check questions to reinforce learning

Optional Video

This optional video covers the fundamental concepts of firewalls. It's helpful but not required to complete the room.

Now that you understand what firewalls are, let's dive into how they actually work. At its core, a firewall is like an intelligent filter that examines every piece of data trying to enter or leave your network, then decides whether to allow it through or block it.

The Basic Function: Packet Filtering

Firewalls work by examining "packets" of data (remember packets from our networking rooms?). Each packet contains information about where it came from, where it's going, and what it contains. The firewall checks this information against a set of rules you've created.

Think of it like a bouncer at an exclusive club:

• The bouncer (firewall) checks everyone (data packets) trying to enter
• They look at your ID (packet information: source, destination, port)
• They check the guest list (firewall rules)
• They either let you in (allow) or tell you to leave (block)

What Firewalls Check:

Firewalls examine several key pieces of information in each packet:

• Source IP Address: Where the packet came from
• Destination IP Address: Where the packet is going to
• Port Number: Which service or application it's for (like web traffic on port 80/443)
• Protocol: What type of communication it is (TCP, UDP, etc.)
• Connection State: Whether it's part of an existing conversation

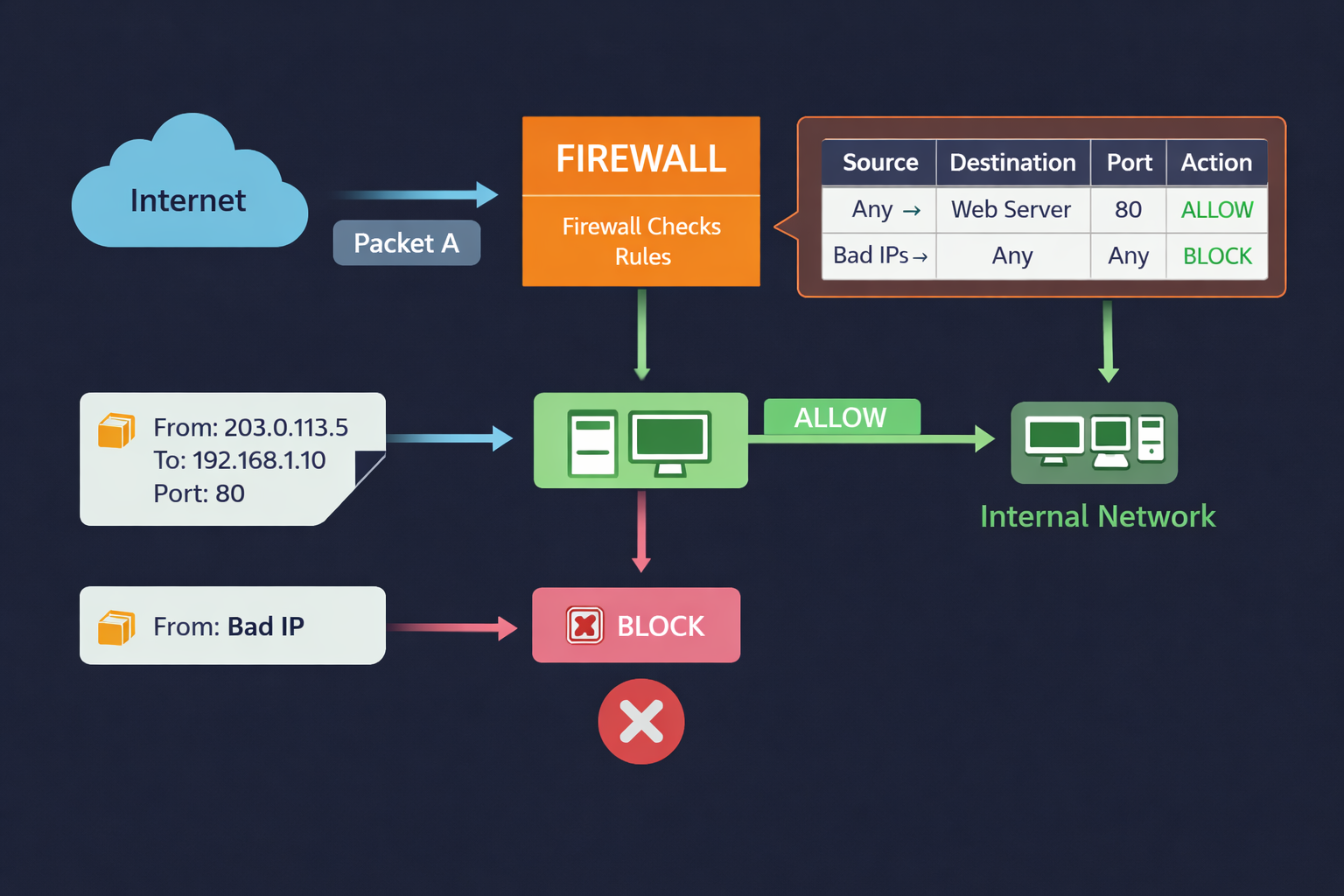

Below is a visual demonstration of how a firewall makes decisions:

Types of Inspection:

Firewalls use different methods to examine traffic:

1. Stateless Inspection: Checks each packet individually without remembering previous packets. Like checking each car at a toll booth separately.
2. Stateful Inspection: Remembers previous packets and connections. Like a security guard who remembers you came in earlier and are now leaving.

How Decisions Are Made:

Firewalls use rules that you (or your network administrator) create. These rules say things like:

• "Allow web traffic (port 80) from any source to our web server"
• "Block all traffic from suspicious IP addresses"
• "Allow email traffic (port 25) only from our email server"

A Simple Scenario:

Imagine you're running a small coffee shop with free Wi-Fi. You want customers to browse the web but you don't want them accessing your point-of-sale system. A firewall can:

• Allow web traffic (HTTP/HTTPS) to the internet
• Block all traffic to your cash register's IP address
• Allow you (the owner) to access everything

Not all firewalls are the same! Just like there are different types of security guards (building guards, event security, personal bodyguards), there are different types of firewalls designed for specific situations. Understanding these types helps you choose the right protection for your network.

The Main Categories:

1. Network-Based Firewalls

These protect entire networks. They're usually hardware devices that sit at the edge of your network, between your internal network and the internet.

• Hardware Firewalls: Physical devices like routers with firewall features
• Where used: Offices, schools, data centers
• Example: A firewall protecting a company's entire office network

2. Host-Based Firewalls

These protect individual devices (hosts). They're software installed on computers, servers, or mobile devices.

• Software Firewalls: Programs running on your device
• Where used: Personal computers, laptops, servers
• Example: Windows Firewall on your laptop

3. Cloud Firewalls

These are firewall services provided by cloud providers. They protect cloud-based resources and virtual networks.

• Virtual Firewalls: Software-based in cloud environments
• Where used: Cloud servers, SaaS applications
• Example: AWS Security Groups or Azure Firewall

Comparison Table:

Firewall Type	Placement	Protects	Best For
Network-Based	Network edge	Entire network	Companies, organizations
Host-Based	Individual device	Single device	Personal computers, servers
Cloud	Cloud network	Cloud resources	Websites, cloud applications

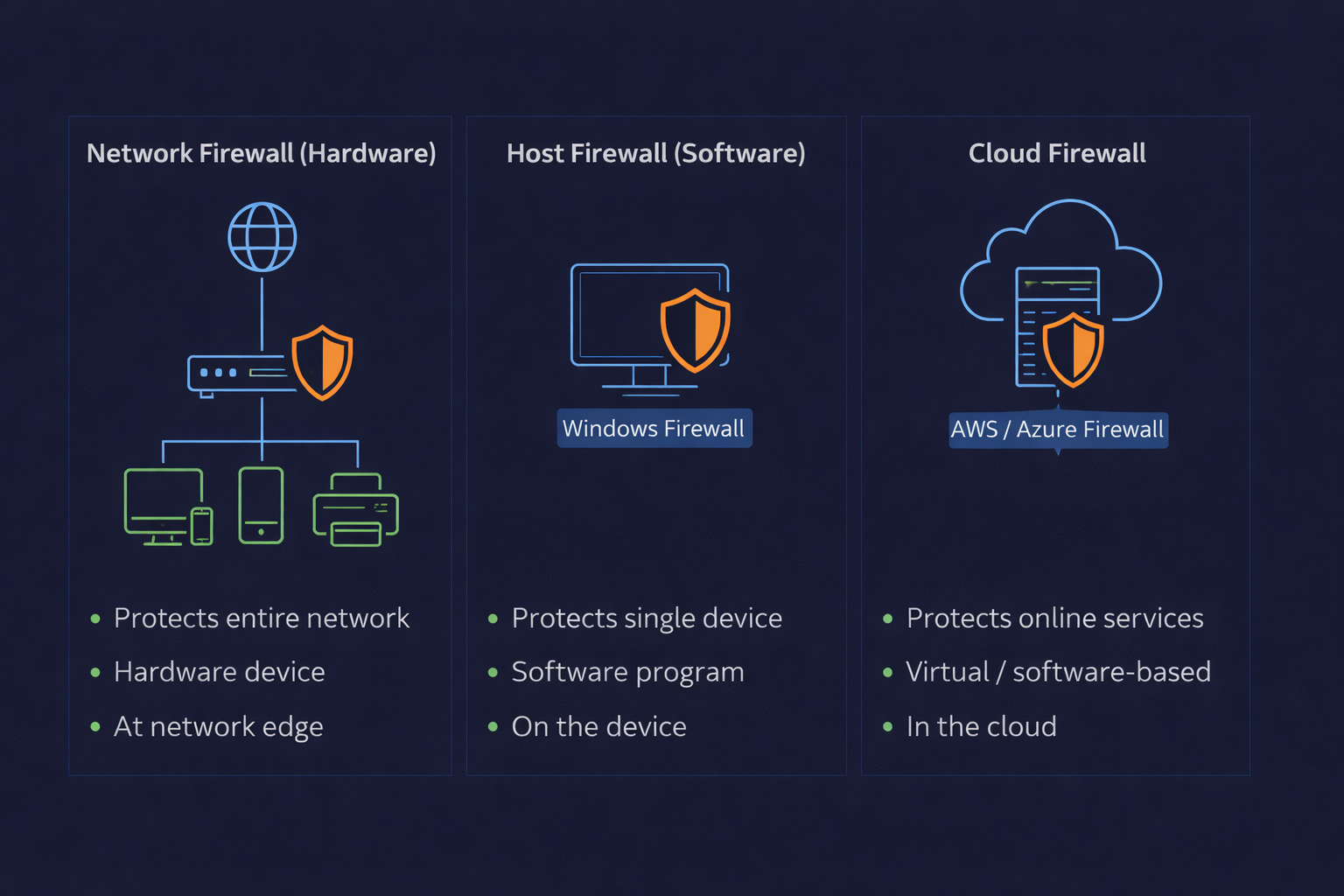

Below is a visual demonstration of where different firewall types are deployed:

Specialized Firewalls:

• Next-Generation Firewalls (NGFW): These are advanced firewalls that can look deeper into traffic and understand applications. Think of them as security guards who can read letters, not just check addresses.
• Web Application Firewalls (WAF): Special firewalls that protect websites from attacks like SQL injection and cross-site scripting.

Choosing the Right Firewall:

The type of firewall you need depends on what you're protecting:

• For a home network: A router with built-in firewall + software firewall on devices
• For a small business: A dedicated hardware firewall + software firewalls on servers
• For a website: Cloud firewall + possibly a Web Application Firewall

Real-World Scenario:

Let's compare two situations:

Home Network:

• Hardware firewall in your router (blocks suspicious internet traffic)
• Software firewall on your computer (blocks bad programs)
• Result: Good basic protection for family use

Company Network:

• Enterprise hardware firewall (advanced features, handles more traffic)
• Host firewalls on all employee computers
• Cloud firewall for company website
• Special firewall for email server
• Result: Comprehensive protection for business needs

Now that you understand what firewalls are and the different types available, let's learn how they're actually configured. Firewall rules are like instructions you give to your security guard, they tell the firewall exactly what to allow and what to block.

The Anatomy of a Firewall Rule:

Every firewall rule contains specific information that helps the firewall make decisions:

1. Source: Where the traffic is coming from (IP address or network)
2. Destination: Where the traffic is going to (IP address or network)
3. Port/Service: What type of traffic it is (web, email, file sharing, etc.)
4. Protocol: How the traffic travels (TCP, UDP, ICMP)
5. Action: What to do (ALLOW or DENY)

Example Rules in Plain English:

• "Allow web traffic from anywhere to our website server"
• "Block all traffic from suspicious-country IP ranges"
• "Allow remote desktop only from the IT department's computers"
• "Deny all incoming traffic by default"

Below is a visual demonstration of how firewall rules are checked:

The Most Important Concept: Rule Order

Firewalls check rules from top to bottom, and they stop at the FIRST rule that matches. This is called "first match wins." The order of your rules is CRITICAL!

Example Rule List (in order):

1. Allow web traffic to server (port 80)
2. Block traffic from bad-ip-list
3. Allow email traffic (port 25)
4. Deny all other traffic

A web packet would match rule #1 and be allowed. The firewall wouldn't even check rules 2-4 for that packet.

Two Default Policies:

Firewalls start with a default policy that says what to do if no rules match:

1. Default Deny (Whitelist): Block everything unless explicitly allowed

• More secure
• Requires careful planning
• Example: "Deny all, then add allow rules for what you need"

2. Default Allow (Blacklist): Allow everything unless explicitly blocked

• Easier to set up
• Less secure
• Example: "Allow all, then add block rules for bad traffic"

A Practical Scenario: Setting Up a Web Server

Imagine you have a web server (IP: 192.168.1.100) that needs to be accessible from the internet. Here's a simple rule set:

Rule Order for Web Server:

1. Allow HTTPS (port 443) from anywhere to 192.168.1.100
2. Allow HTTP (port 80) from anywhere to 192.168.1.100
3. Allow SSH (port 22) only from IT office IPs to 192.168.1.100
4. Deny all other traffic to 192.168.1.100

What this does:

• Rules 1-2: Let anyone visit your website
• Rule 3: Only IT staff can manage the server remotely
• Rule 4: Everything else is blocked

Common Configuration Mistakes to Avoid:

• Putting broad rules before specific ones
• Forgetting to save changes after configuring
• Not logging blocked traffic (so you don't know what's being blocked)
• Using "ANY" for source/destination when you should be specific

Congratulations! You've completed the Understanding Firewalls room. Let's review what you've learned about this essential network security tool.

Summary of Key Concepts:

Firewalls are security systems that monitor and control network traffic based on predetermined security rules. They act as barriers between trusted internal networks and untrusted external networks (like the internet).

What You Should Now Understand:

• What Firewalls Are
  • Security guards for your network
  • Filters that examine all incoming/outgoing traffic
  • Essential protection for any network connected to the internet
• How Firewalls Work
  • They inspect packets based on source, destination, port, and protocol
  • Use rules to make allow/deny decisions
  • Can be stateless (check individual packets) or stateful (track connections)
• Types of Firewalls
  • Network-based: Protect entire networks (hardware devices)
  • Host-based: Protect individual devices (software programs)
  • Cloud-based: Protect online services and virtual networks
  • Different types for different needs
• Firewall Rules & Configuration
  • Rules are processed in order (first match wins)
  • Default policies: "deny all" (more secure) or "allow all" (easier)
  • Proper rule order is critical for security
  • Testing rules before deployment is essential

Real-World Applications:

With this knowledge, you can now:

• Understand why your home router has firewall features
• Recognize when software on your computer is acting as a firewall
• Appreciate how businesses protect their networks
• Understand basic firewall configuration concepts
